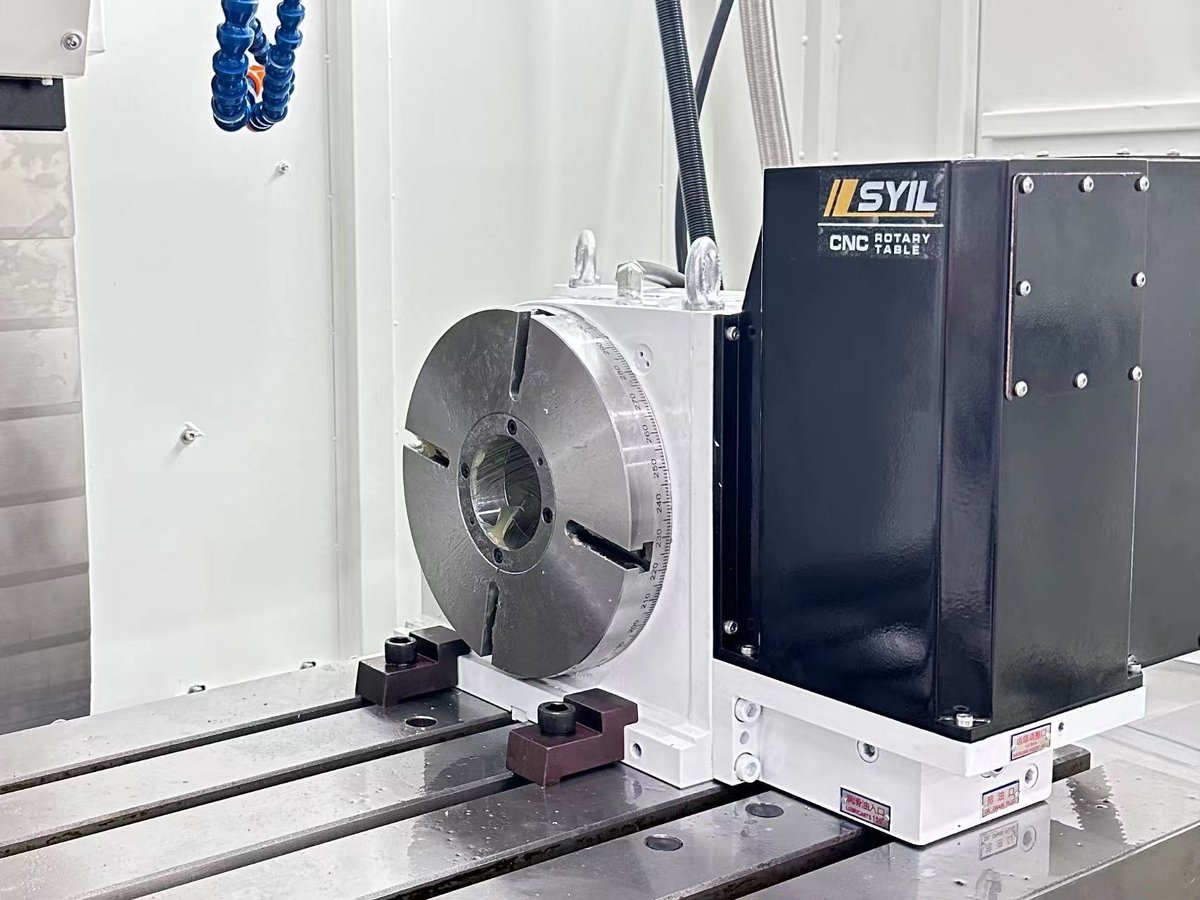

SYIL X9 Vertical Mill

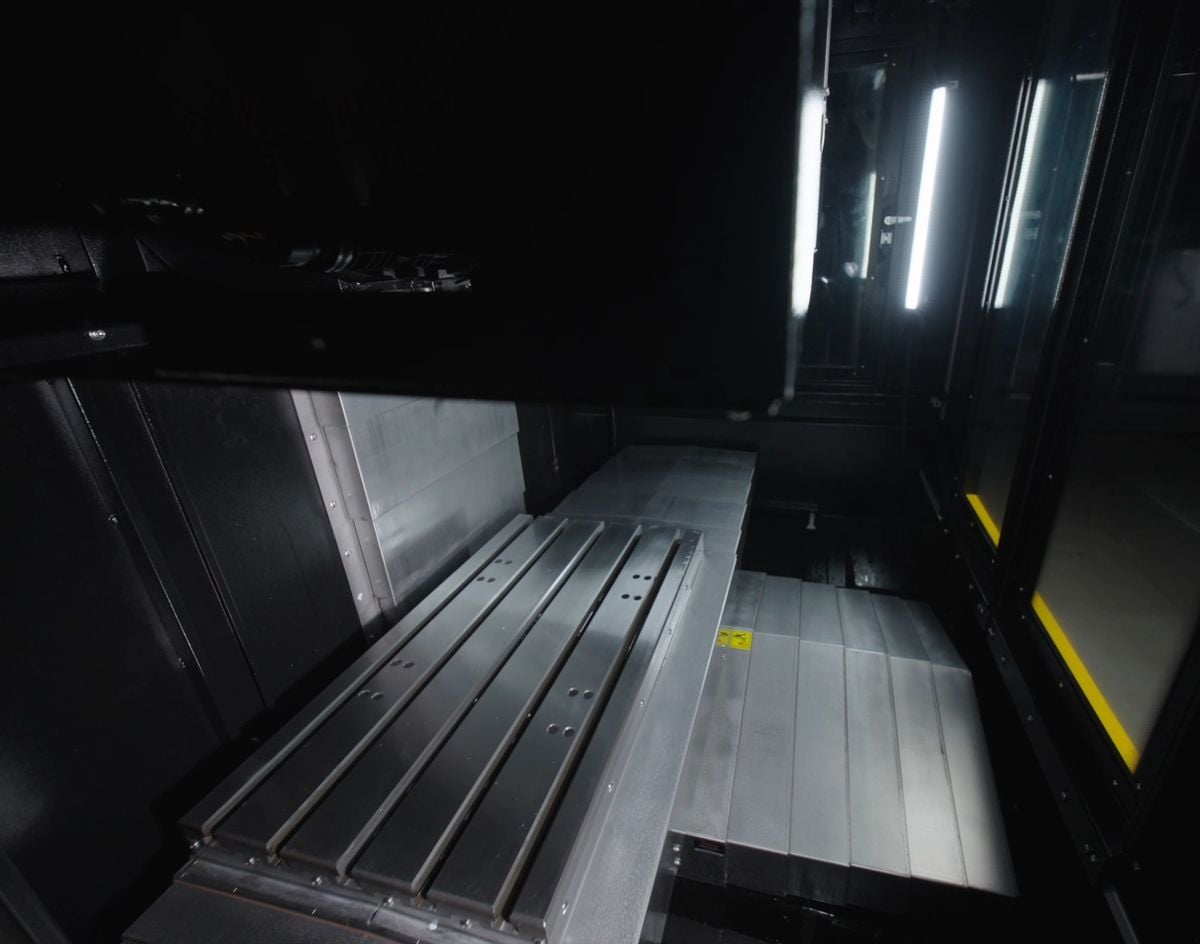

Table

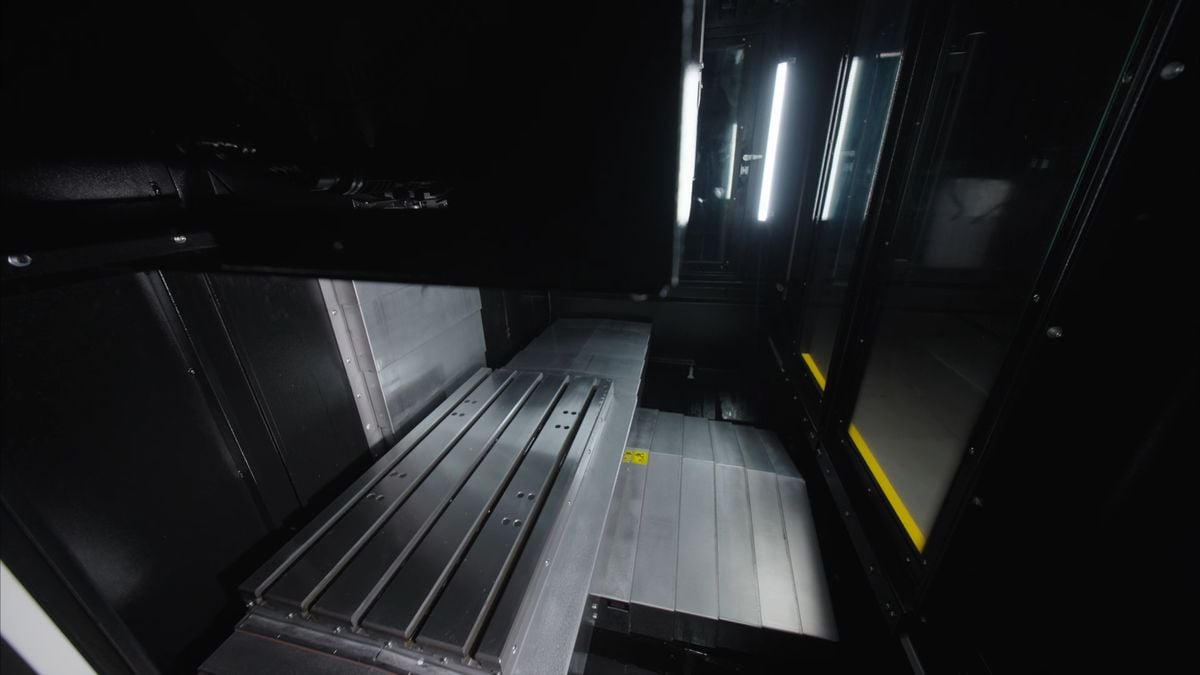

Working surface: 600x400mm

T-Slots (Number x Size x Distance): 3x14x100mm

Max. table load: 160kg

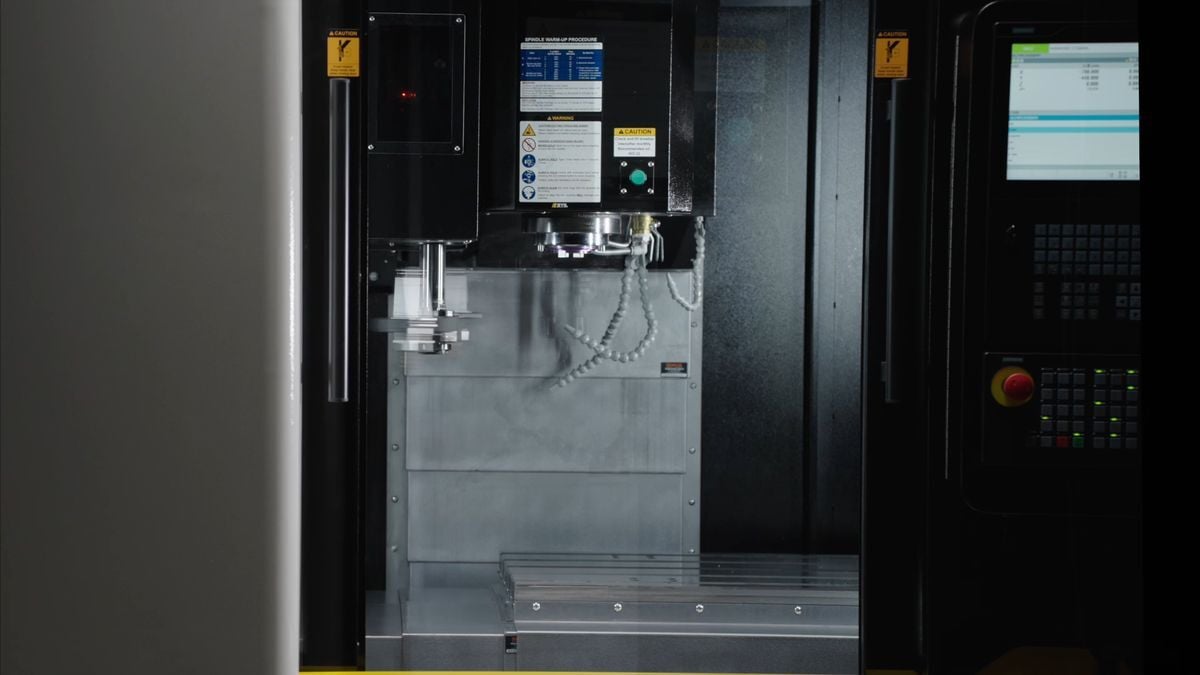

Travel

Longitudinal Travel X: 760mm

Cross Travel Y: 510mm

Headstock Travel Z: 500mm

Distance between spindle end and tabletop: 130-630mm

Distance between spindle center and column surface: 430mm

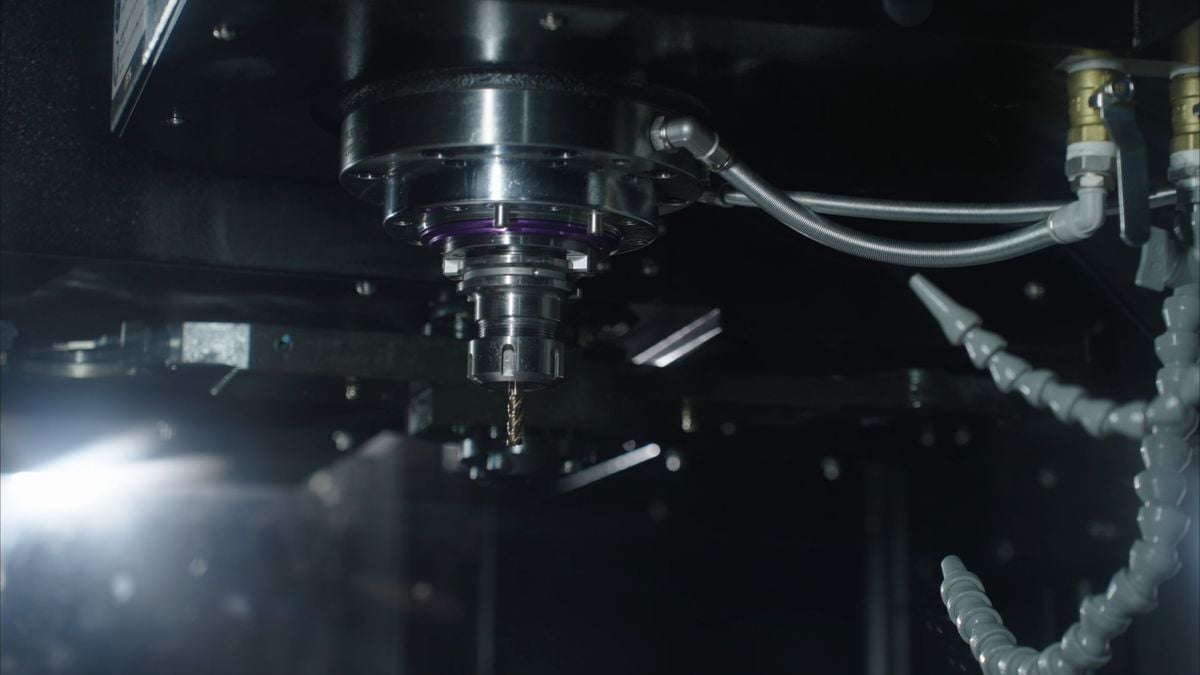

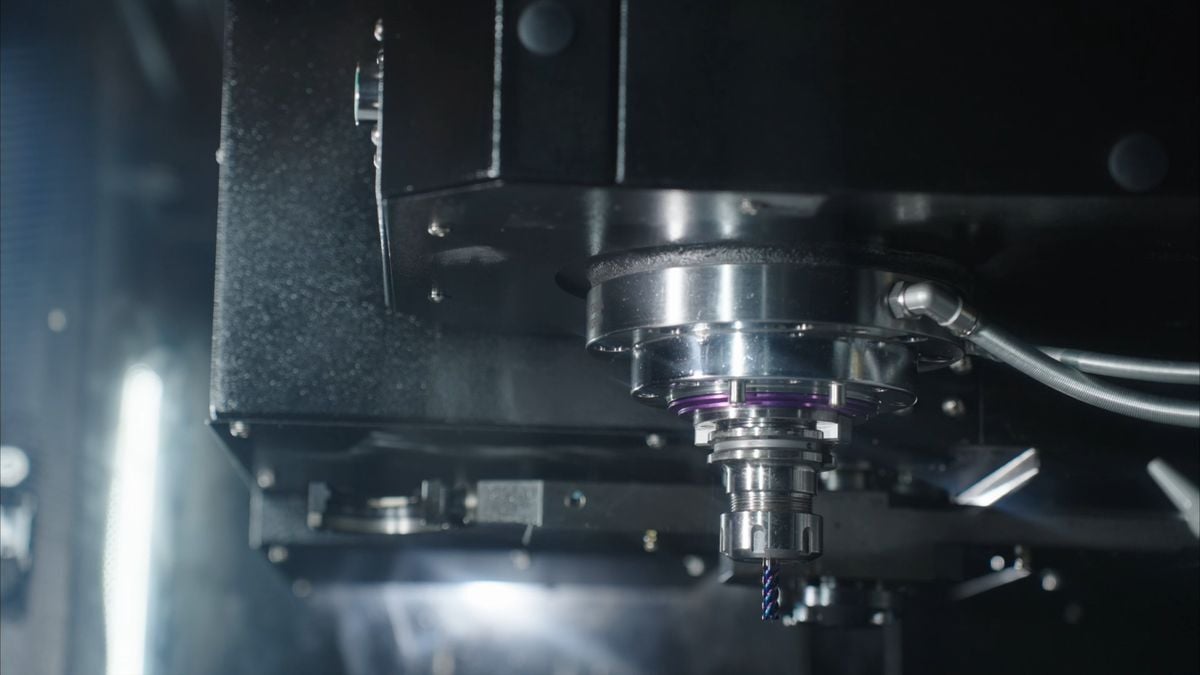

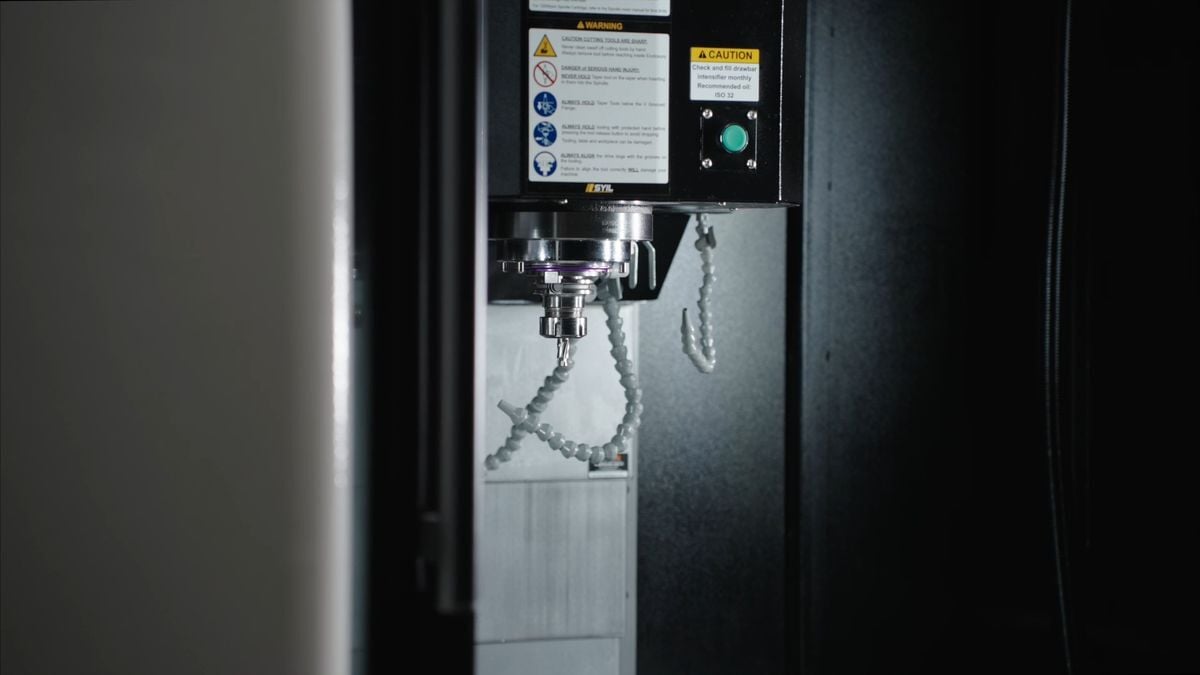

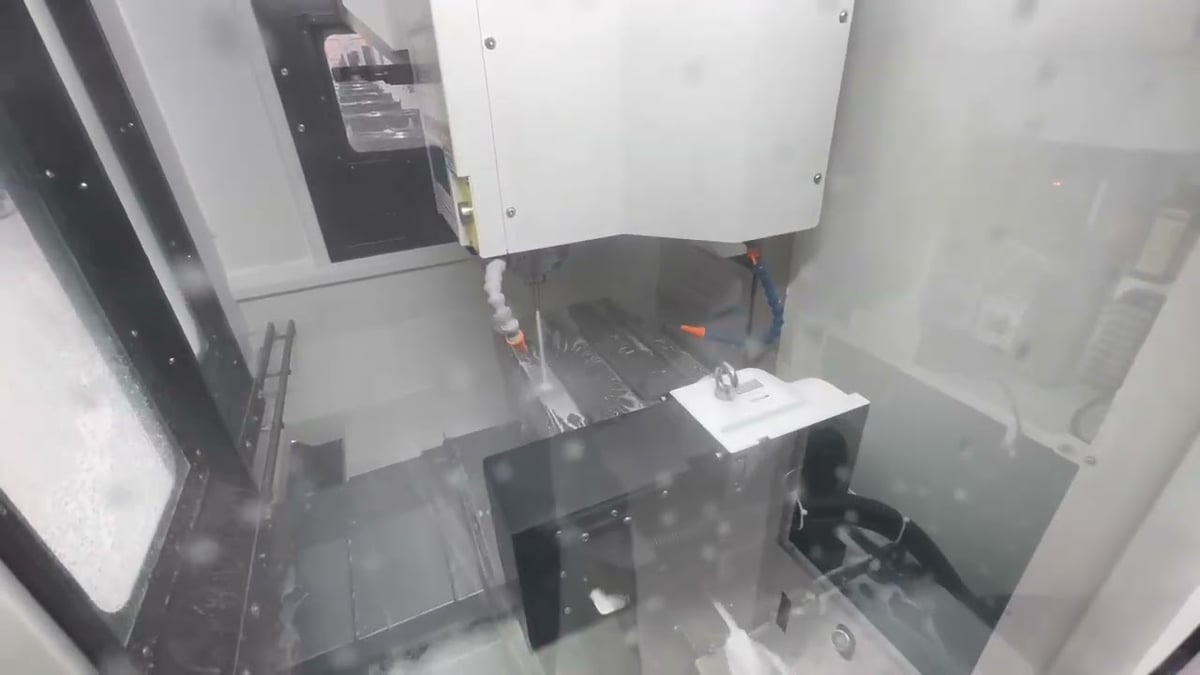

Spindle

Spindle nose: BT40/ HSK A63

Spindle speeds: 12000rpm/20000rpm/24000rpm/30000rpm(Optional)

Mechanism of Transmission: Belt Type/Direct type/Bulid-in type (Optional)

Feed

Cutting feed: 10,000mm/min

Rapid traverse: 48,000mm/min

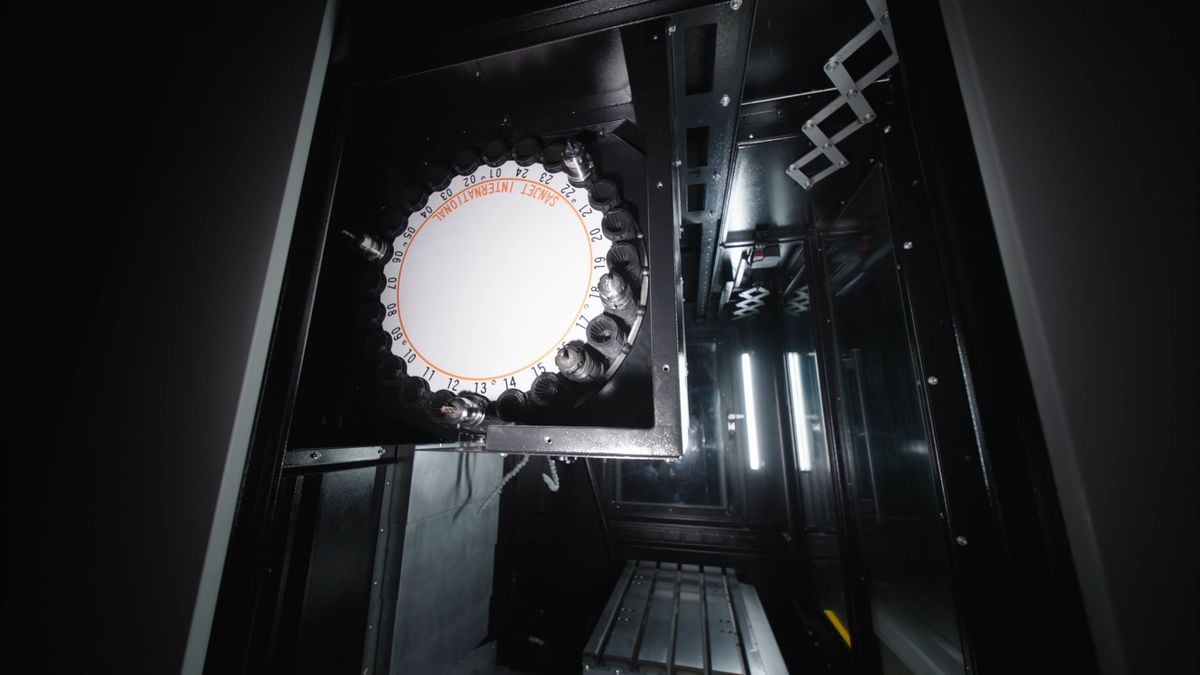

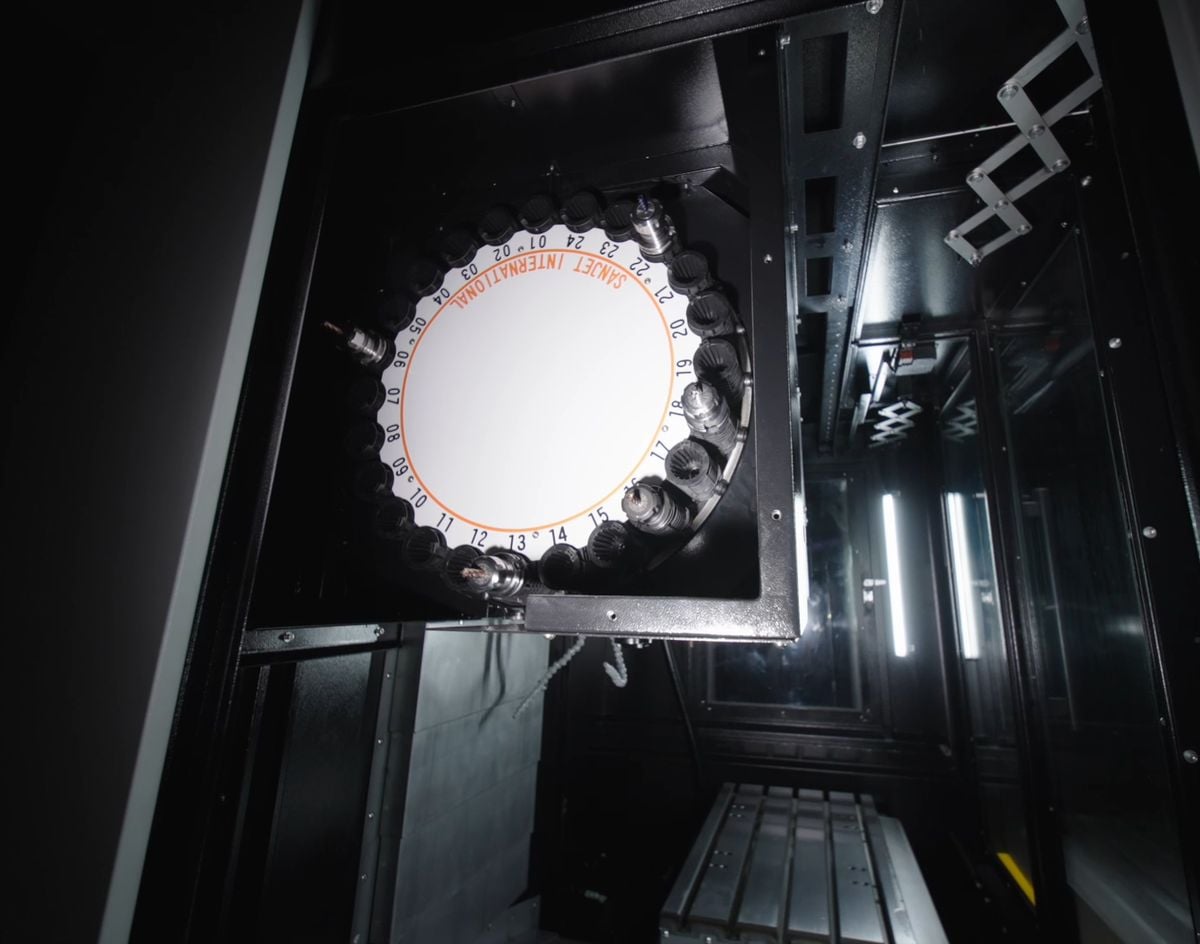

Auto Tool Changer

Tool holder: Arm type

Tool storage Capacity: 24set

Max. tool diameter: 80mm

Max. tool length: 300mm

Max. tool weight: 3kg

Tool to Tool: 2.0sec

Motors

Spindle motor output： 7.5/11kw

Drive motors X,Y Axis: 1.5kw

Z Axis: 3.0kw

General

Floor space (Length x Width x Height): 2320X1760x2650mm

Net weight: 5500kg
